FTTH Single-mode LC Pcie Loss Has No Attribute Module Cable Loopback Plugs

Brand Name : HICORPWELL

Model Number : ELC925T　LC/APC Optic Fiber Quick Fast Connector for FTTH 2.0X 3.0mm Drop cable

Certification : IEC 60794-2-10/11

Place of Origin : China

MOQ : 10sets

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 5000pcs Per Week

Packaging Details : Each fact connector into a plastic bag for SC UPC APC Fast assembly Fiber Fast Connector

Type : LC　APC　Optic Fiber Quick Fast Connector

Insertion loss : less than 0.3 (max 0.4)

Paintcoat Color : Blue

Return loss : ≥40dB

Drop Cable : 2.0X 3.0mm Drop cable

Tensile strength : >50N

Mode : Singlemode or Multimode

Cable Type : 2.0mm 3.0mm Cable, 3X2mm Drop Cable

Package : Individual Box or According to Customer′s Request

Insertion Loss : 100% <0.3dB

Contact Now

FTTH Single-mode LC Pcie Loss Has No Attribute Module Cable Loopback Plugs

Hicorpwell Loopback Modules are designed for testing and engineering purposes.
Designed to provide test engineers with an effective way of testing the transmission capability and receiver sensitivity of optica

Product Detail

Keywords Loopback Module
Application FTTH/Area Network/Test Equipment
Fiber Type 9/125um SM Fiber or MM Fiber 50/125 ;62.5/125
Type Loopback Module, Singlemode-SC
Minium Purchanse 10 units
Application Burn-in test and engineering applications
Ports Type Plugs into input and output ports
Interface APC or UPC

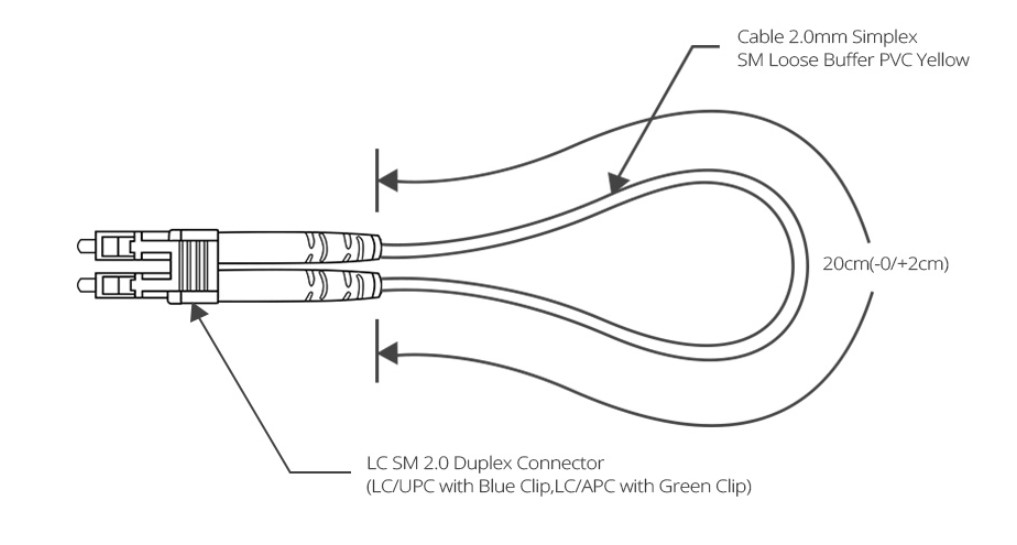

Hicorpwell Fiber Optic Loopback Modules are designed to provide test engineers with an effective way of testing the transmission capability and receiver sensitivity of optical network equipment.

  • Tests network transmitting and receiving devices

  • Also use for burn-in test and engineering applications

  • Plugs into input and output ports

  • Easy to use

Feature

* Low insertion loss, High return loss;
* User friendly, Compact size;
* PVC or LSZH Jacket;
* PC/UPC/APC polish;
* Good exchangeability and repeatability;
* Comply with Telcordia GR-326-CORE Specification;
* 100% functionally tested guaranteeing performance and integrity;
Connector Type
LC/SC
Fiber Mode
Singlemode/Multimode
Insertion Loss
SM ≤0.2dB MM ≤0.2dB
Return Loss
SM ≥50dB MM ≥35dB
Repeatability
≤0.1
Fiber Length
1m/2m/3m or Customized
Length and Tolerance
±10cm

Application

*Various Test Equipments;
*Optical Fiber Communication System;
*Telecommunication Network;
*Cable Television Network;
*LANs,WANs;
*System Debugging.
FTTH Single-mode LC Pcie Loss Has No Attribute Module Cable Loopback PlugsFTTH Single-mode LC Pcie Loss Has No Attribute Module Cable Loopback PlugsFTTH Single-mode LC Pcie Loss Has No Attribute Module Cable Loopback Plugs
